Om produktet
Very easy in use, cleaning, maintenance and even servicing. Perfect for washing plates, cutlery, glasses, mugs, trays, GN containers. Electromechanical controls. Housing made of stainless steel AISI 304. Separate stainless steel spray arms for washing and rinsing. 4 surface filters over tank water level. Additional sieve in front of the pump inlet. Built-in springs for easy hood lift. Washing cycles number/duration: 1/120 s. Capacity: up to 30 baskets/h. Water consumption per cycle: 2-2,5 l (depending on water pressure). Washing water temperature: 62°C, rinse water temperature: 85°C. Boiler (capacity/power): 7,4 l/7,5 kW.Tank (capacity/power): 68 l/6,0 kW. Pump power: 1,5 HP. Safety thermostat for boiler/for tank up to 105°C/99°C. Analog water thermometer for boiler and tank. IP44 protection class. Weight 111 kg. EQUIPMENT: - 1x universal basket 500x500x(H)105 mm for glasses - 1x basket with pins 500x500x(H)105 mm for plates - 1x cutlery basket 110x110x(H)130 mm - Water supply hose length 1,5 m - Drain hose - Power cord without plug - Rinse aid dispenser Preparred for detergent pump installation (screw in tank rear wall) Vertically adjustable stainless steel legs, regulated from 100 to 150 mm
Klargjør før levering
Usikker på tilkoblingene? Vi hjelper med prosjektering, levering og oppstart.
Nedlastinger
Relevant utvalg
HENDI

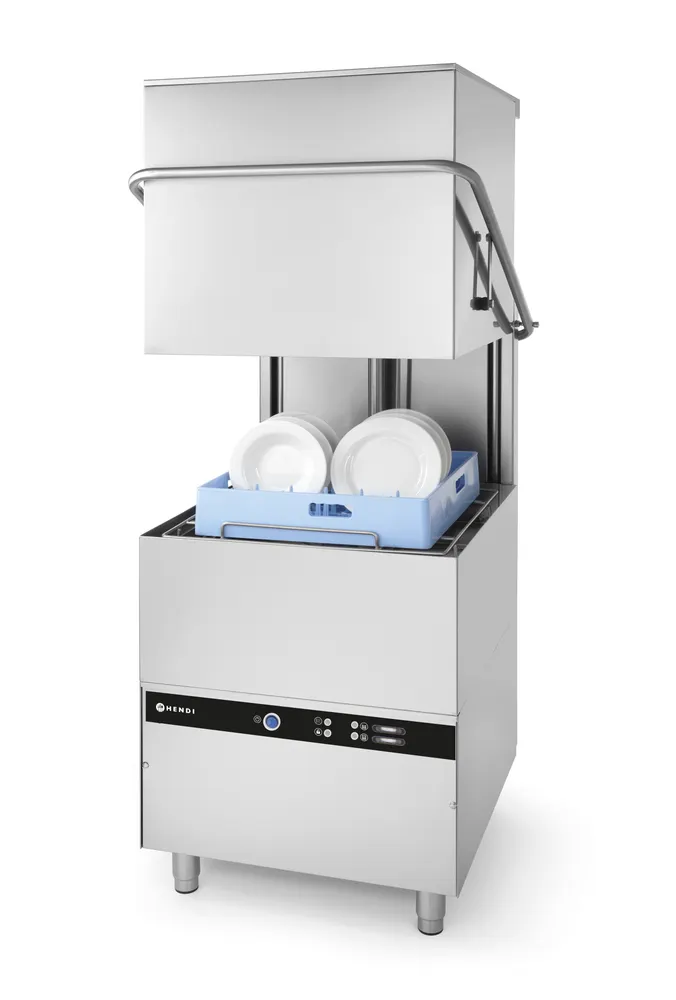

Modell 233061 · Varenr. HEN233061
Very easy in use, cleaning, maintenance and even servicing. Perfect for washing plates, cutlery, glasses, mugs, trays, GN containers. Electromechanical controls. Housing made of stainless steel AISI 304. Separate stainless steel spray arms for washing and rinsing. 4 surface filters over tank water level. Additional sieve in front of the pump inlet. Built-in springs for easy hood lift. Washing cycles number/duration: 1/120 s. Capacity: up to 30 baskets/h. Water consumption per cycle: 2-2,5 l (depending on water pressure). Washing water temperature: 62°C, rinse water temperature: 85°C. Boiler (capacity/power): 7,4 l/7,5 kW.Tank (capacity/power): 68 l/6,0 kW. Pump power: 1,5 HP. Safety thermostat for boiler/for tank up to 105°C/99°C. Analog water thermometer for boiler and tank. IP44 protection class. Weight 111 kg. EQUIPMENT: - 1x universal basket 500x500x(H)105 mm for glasses - 1x basket with pins 500x500x(H)105 mm for plates - 1x cutlery basket 110x110x(H)130 mm - Water supply hose length 1,5 m - Drain hose - Power cord without plug - Rinse aid dispenser Preparred for detergent pump installation (screw in tank rear wall) Vertically adjustable stainless steel legs, regulated from 100 to 150 mm
